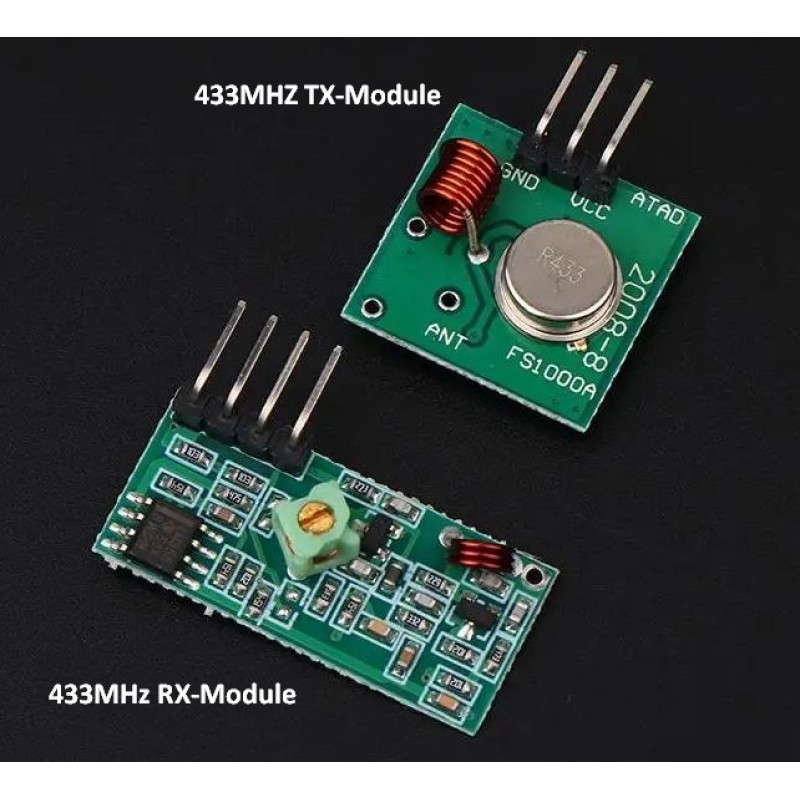

433Mhz RF Transmitter (FS1000A) and Receiver (MX-RM-5V) pair

433Mhz RF Transmitter (FS1000A) and Receiver MX-RM-5V) Pair:
FS1000A Transmitter Module:
The main part of the transmitter module is the SAW resonator which is tuned for 433.92 MHz operation.
Moreover, there is also a switching transistor and a few other passive components. TX power mainly depend on supply voltage.
Description:
Transmission distance: 20-200 meters (performance varies depending on voltage)
Operating voltage: 3.5-12V
Operating mode: AM /FSK
Transmission rate: 4KB/s
Transmission power: 10mW
Transmission frequency: 433MH
External antenna: 25cm (standard multi-core or single-core cable, not included)
Pin arrangement: (DATA; VCC; GND)

Applications:
- wireless power switch, socket, remote control switch, receiver module,
- access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closer control system
- security, surveillance systems, home security products, electric doors, alarm host, alarm


Github: Getting Started with 433 MHz ASK Modules

Github: TX/RX  ino

RadioHead:  Library
