DRV8833 DC Dual H-Bridge Motor Driver Board Module Black

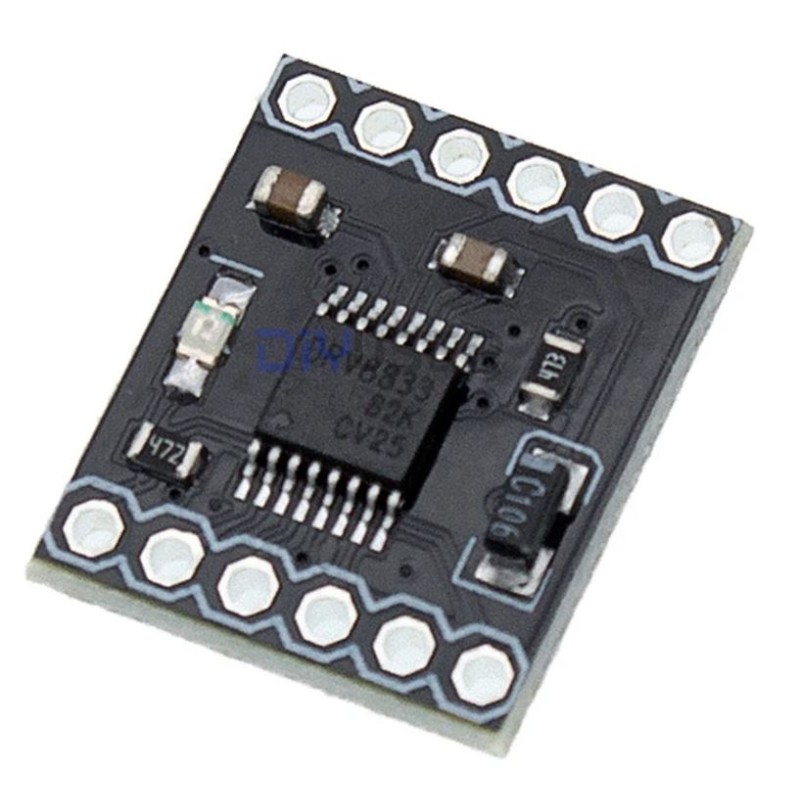

DRV8833 DC Dual H-Bridge Motor Driver Board Module:

The DRV8833 device is an integrated motor driver solution for brushed DC or bipolar stepper motors.
The device integrates two NMOS H-bridges and current regulation circuitry.
The DRV8833 can be powered with a supply voltage from 2.7 to 10.8 V and can provide an output current up to 1.5-A RMS.
A simple PWM interface allows easy interfacing to the controller circuit.
The current regulation is a fixed frequency PWM slow decay.
The device includes a low-power sleep mode, which lets the system save power when not driving the motor.

Specifications:

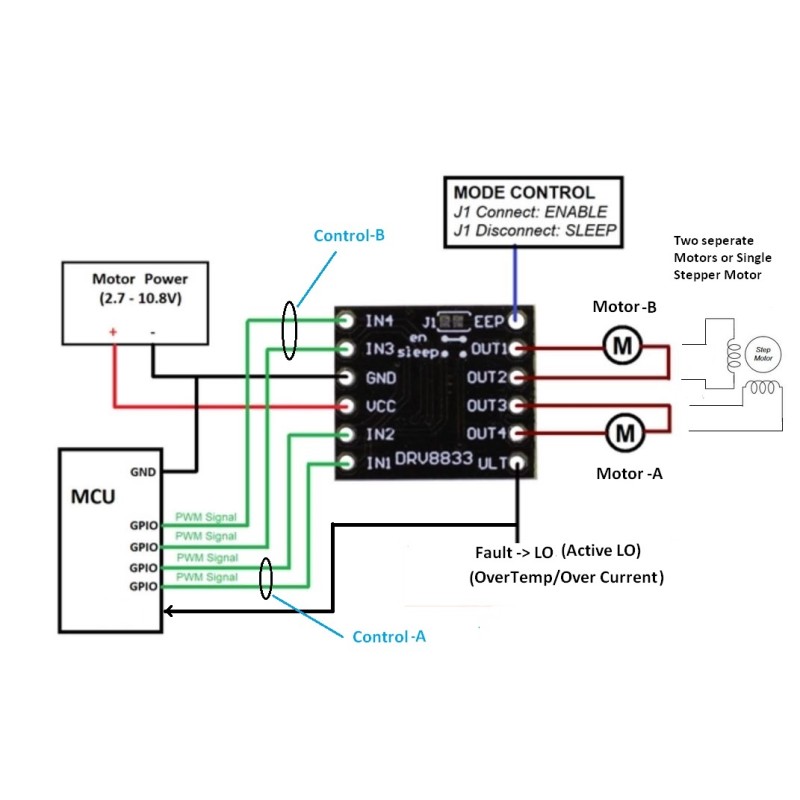

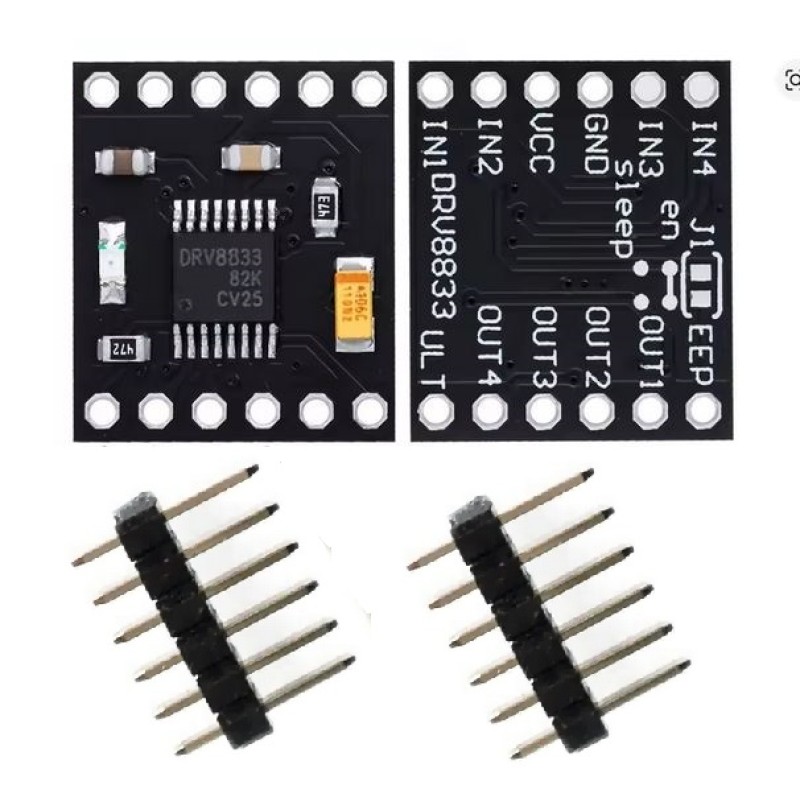

Pin description:
IN1: logic input control port A1, level 0-5V.
IN2: logic input control port A2 level 0-5V.
IN3: Logical input control port of B1, level 0-5V.
IN4: logical input control port of B2, level 0-5V.
GND: 0V.
VCC: motor supply pin, voltage range 2.7V -- 10.8V.
FAULT: Over Tem/Current Detect, Active LO

Download Datasheet here.
