RX480E 433Mhz RF Receiving and Learning Code EV1527 Decoding Module 4-Ch

RX480E 433Mhz RF Receiving and Learning Code EV1527 Decoding Module 4-Ch:
RX480-E4 Wireless Receiver Module is a compact and efficient solution for remote control applications. Operating at 433MHz o, this module supports a working voltage of 3.3V-5V with a low current consumption of just 3mA. The module is designed for reliable and sensitive reception, with a sensitivity of -108dBm and a maximum data rate of 10KB/s. It features four output channels, each corresponding to a button on the remote control, and supports multiple working modes including point movement, self-locking, and interlocking, making it highly versatile for various wireless applications.

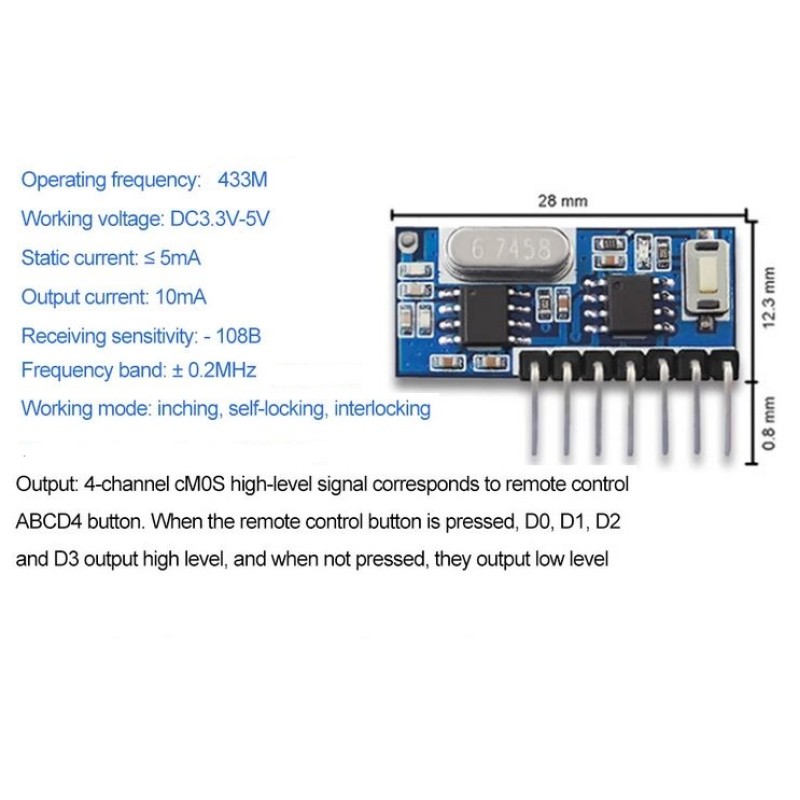

Description:
Frequency: 433Mhz
Frequency band: ± 0.2 MHz
Supply Voltage: 3.3V - 5V
Standby Current: <5ma
Receiving sensitivity: - 108dB

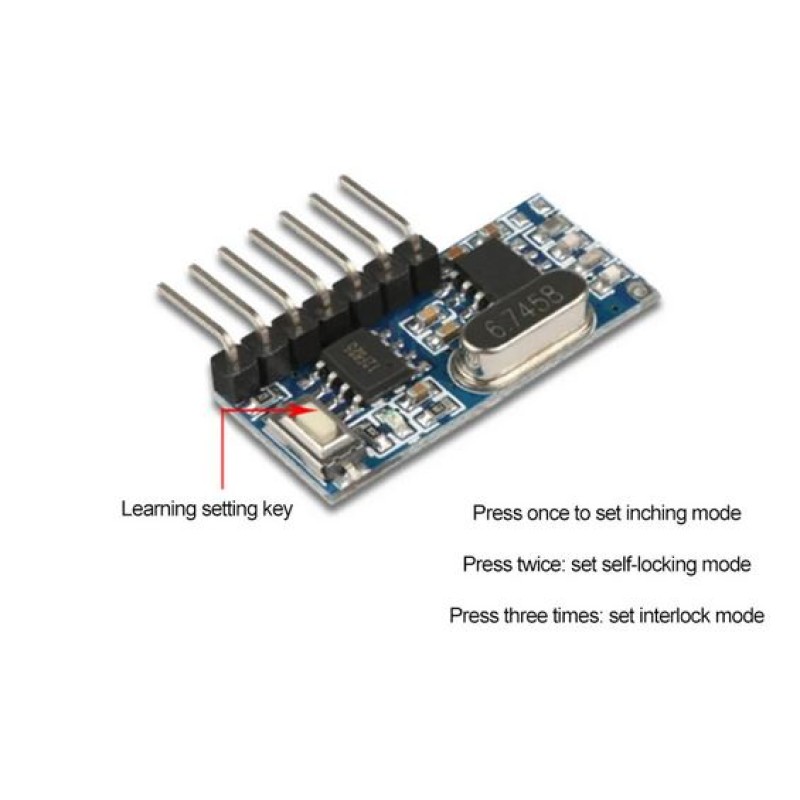

Working mode: inching, self-locking, interlocking

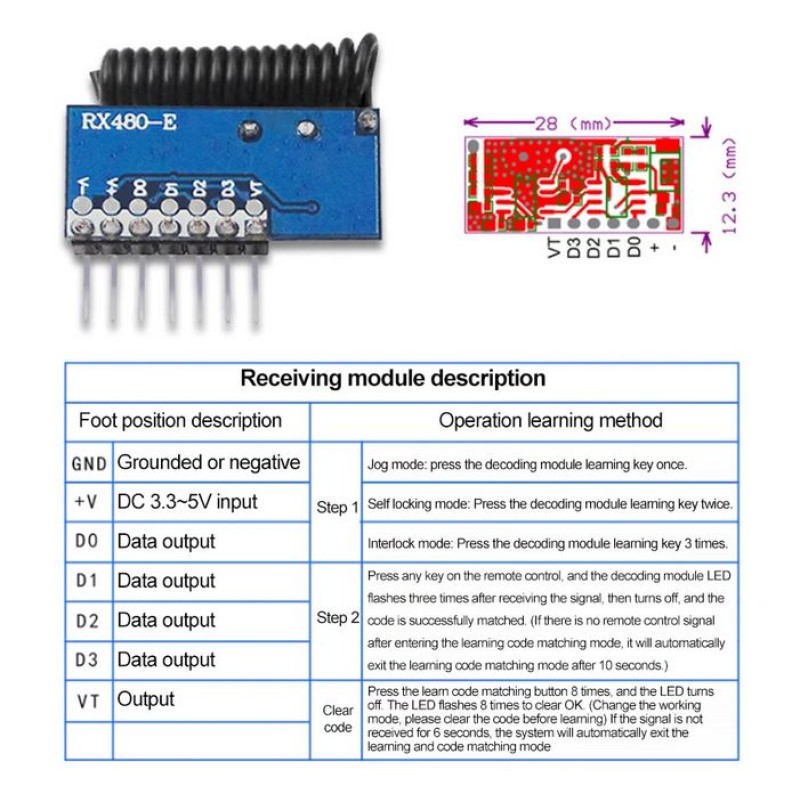

Output: 4-channel CMOS high level signal corresponds to remote control ABCD 4 button.
When the remote control button is pressed, D0, D1, D2 and D3 output activates (Active-Hi),

Note:
The EV1527 is a popular CMOS-based, 24-bit OTP (One Time Programmable) encoder chip used in 433MHz/315MHz wireless, short-range OOK/ASK, learning-code remote controls. It encodes a unique 20-bit ID and 4-bit data, widely used for garage doors, home security, and industrial controls, offering low power consumption and easy pairing.

Instruction manual: QIACHIP RX480E
