FR120N MOSFET Switching Module 100V 9.4A Opto Isolated for Arduino
- Product Code: FR120N MOSFET Switching Module
- Availability: In Stock
$2.25
- Ex Tax: $2.25

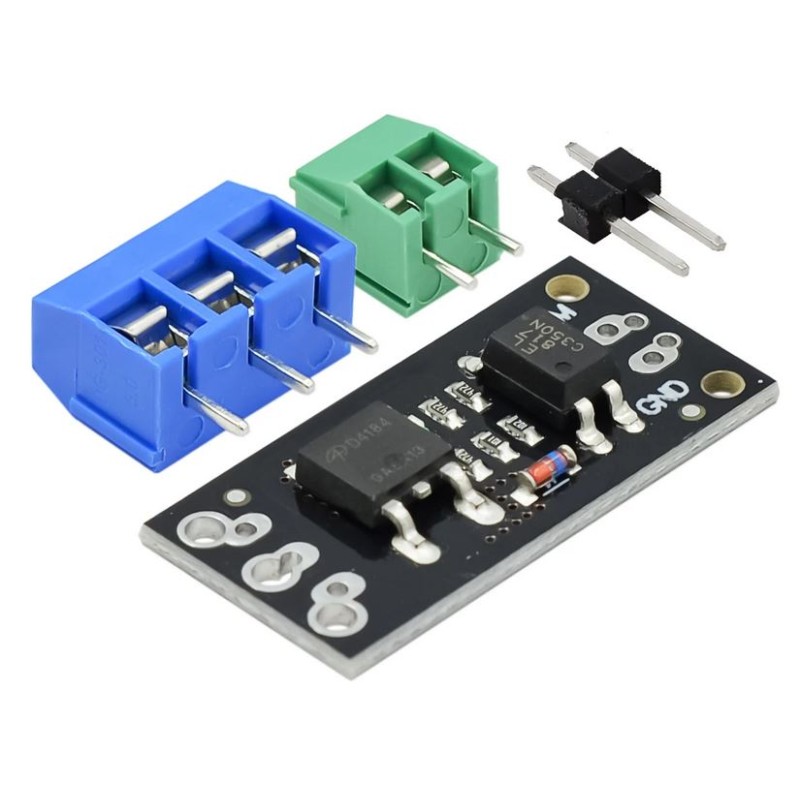

MOSFET Switching Module 100V 9.4A Opto Isolated for Arduino:
FR120N N-CH Mosfet is used in this Module. Rating: 100V/9.4A. Ideal for switching applications with Arduino.
Input isolated from external supply voltage.
Ideal for Motor control, power control, Light dimming etc
Description:
1.

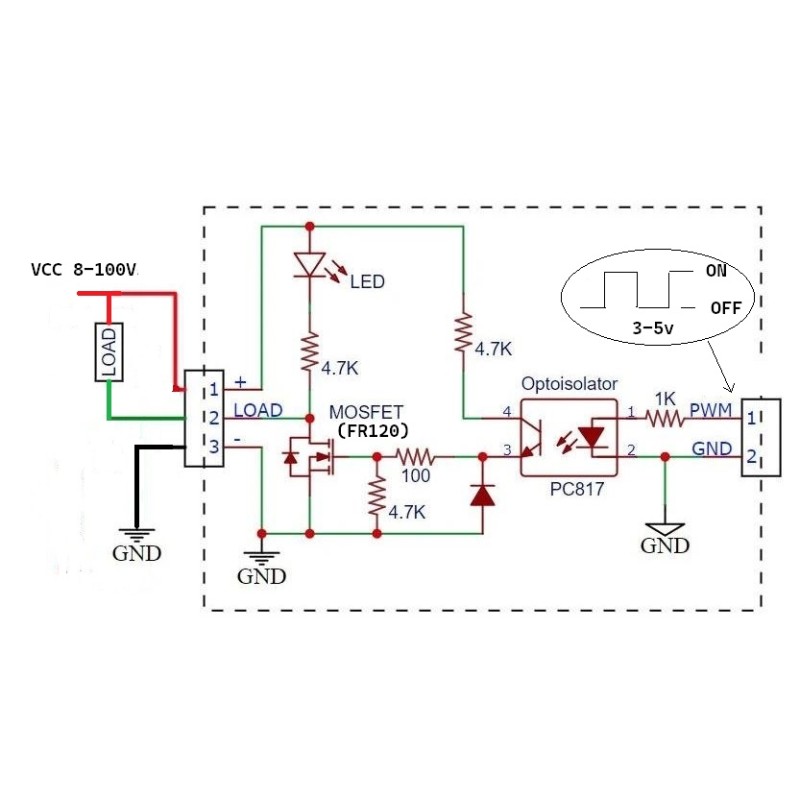

With opto-coupler isolation, the control signal is isolated
2. Compatible with MCU and Arduino lamp control board, 3V or 5V signal
3.Widely used to control motor start-stop, solenoid valve and other tributary equipment

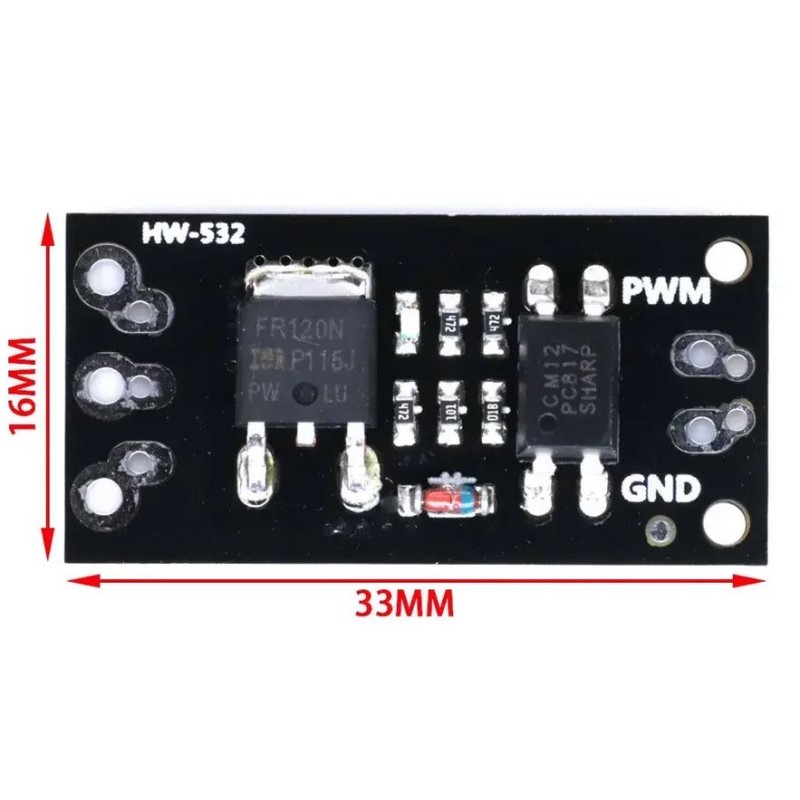

4. Module size: 23mm X 16mm
