CH224K Based USB Power Delivery Decoy Board for USB-C PD applications

CH224K Based USB Power Delivery Decoy Board for USB-C PD applications:
A USB Power Delivery (PD) decoy is a device designed to manipulate or emulate USB PD negotiation during the charging process.
USB PD is a protocol that allows for faster charging and power negotiation between devices. A decoy device can be used for various purposes, including testing, analysis, or even security research.

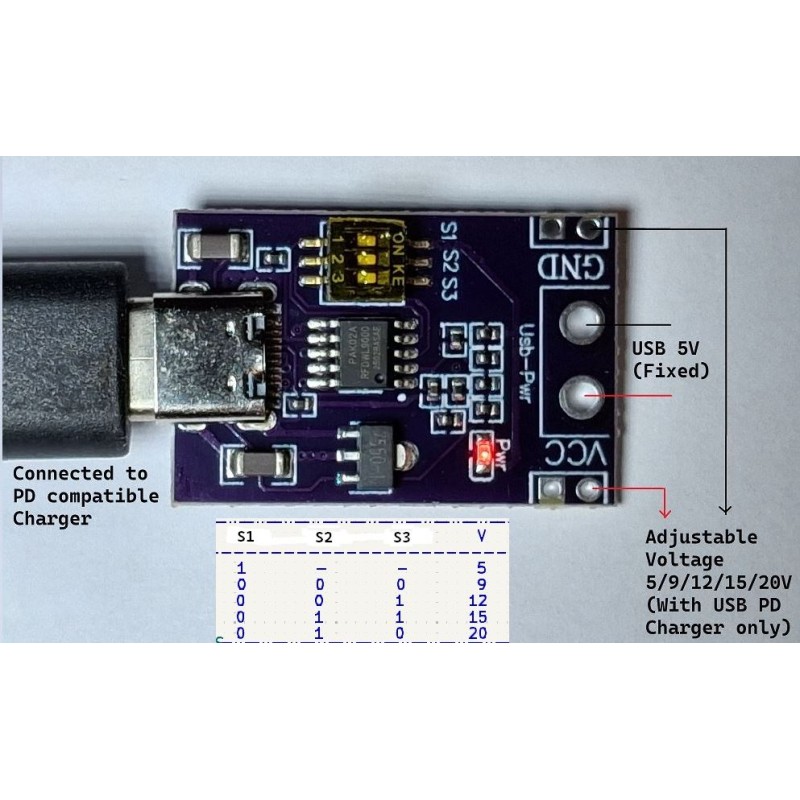

With the USB-PD Decoy, a USB-C power adapter can be used as a power supply with the option of selecting different output voltages via DIP switches.

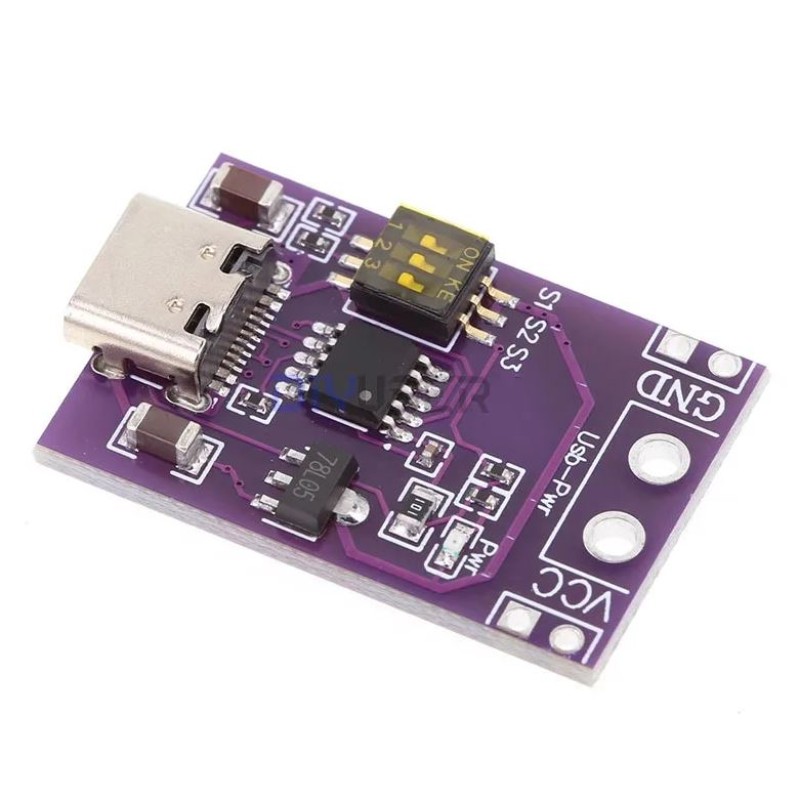

It is based on the cheap and easy-to-use CH224K multi-fast charging protocol power receiving chip.

Description:
Support 5V 9V 12V 15V 20V fixed voltage output
Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC
Size: 3.1*2*cm

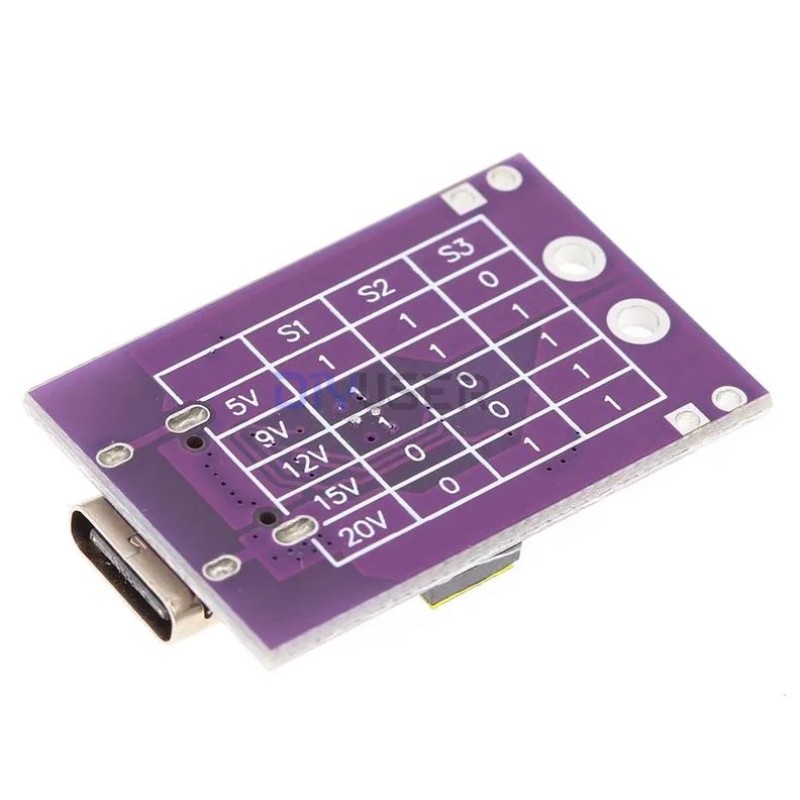

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to set the output voltag

Please Note:
The CH224 is a sink controller designed to negotiate with USB-C PD  Compatible chargers, supporting up to 100W.
5V Only Chargers: If plugged into a standard, non-PD 5V charger, the CH224 will output 5V.
However, if you configure the chip to request 12V and use a 5V-only charger, it will likely output 5V or nothing.

Download Datasheet: CH224
