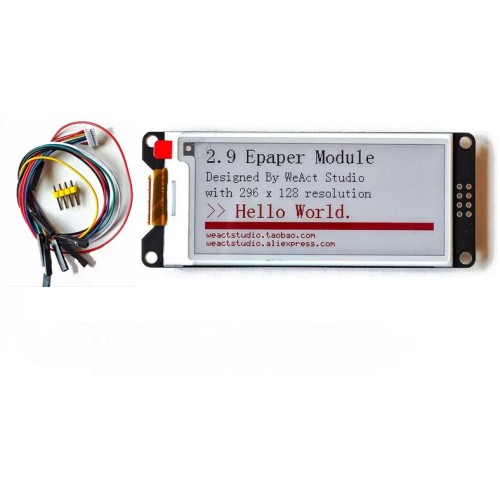

WeAct 2.9inch Epaper Display Module SPI Black-White-Red Screen

WeAct 2.9" Epaper Module Display SPI Black-White-Red Screen :
This is an Active Matrix Electro phoretic Display (AM EPD), with interface and a reference system design.
The display is capable to display images at 1-bit white, black full display capabilities.
The 2.9inch active area contains 296×128 pixels.
The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.
Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) Systems.

Features:
- 296×128 pixels display
- High contrast High reflectance
- Ultra wide viewing angle Ultra low power consumption
- Pure reflective mode
- Bi-stable display
- Commercial temperature range
- Landscape portrait modes
- Hard-coat antiglare display surface
- Ultra Low current deep sleep mode
- On chip display RAM
- Waveform can stored in On-chip OTP or written by MCU
- Serial peripheral interface available
- On-chip oscillator
- On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
- I2C signal master interface to read external temperature sensor
- Built-in temperature sensor

Description:
Model: WeAct 2.9" E-Papaer B/W/R
Dot matrix: 296 x 128

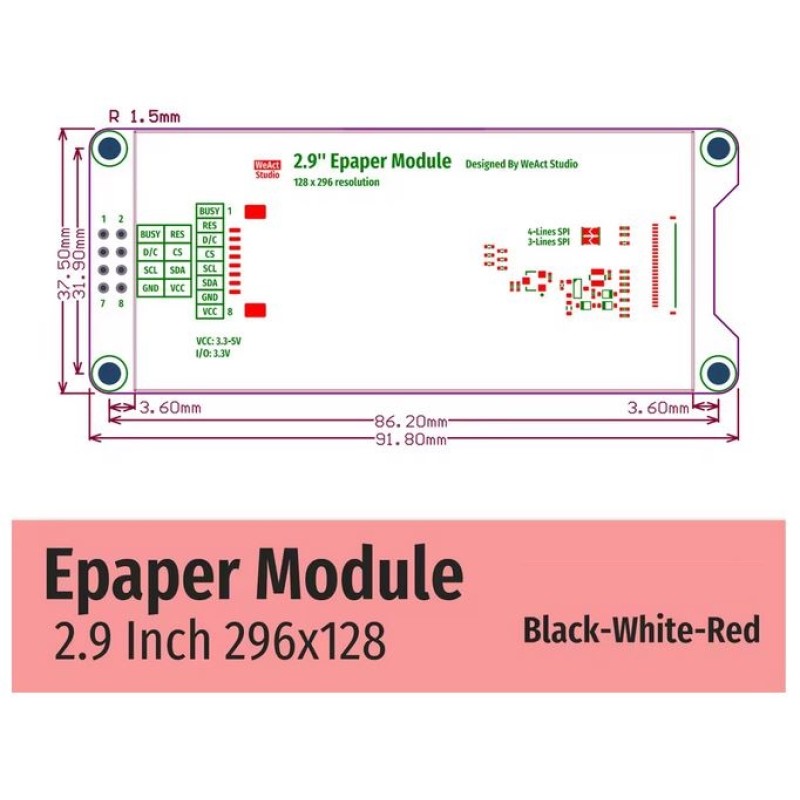

Dimensions: 91.8 x 37.5mm
Voltage: 3.3V-5V
Interface:  SPI interface
I/O Level: 3.3V
Backlight: No Backlight, Reflective

More Info:
Github Page

Sample Project: WeAct E-Paper Module with ESP8266 (D1 Mini) Arduino IDE
