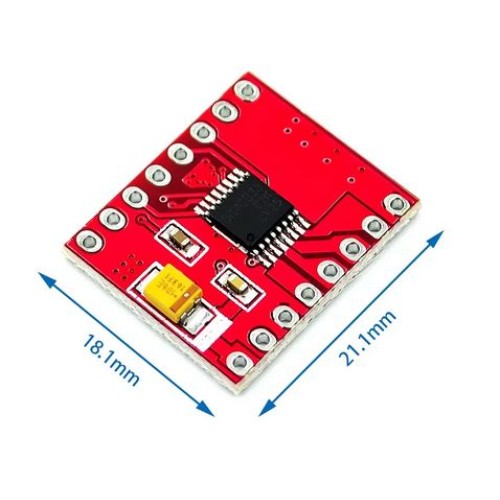

DRV8833 DC Dual H-Bridge Motor Driver Board Module 1A

DRV8833 DC Dual H-Bridge Motor Driver Board Module 1A:

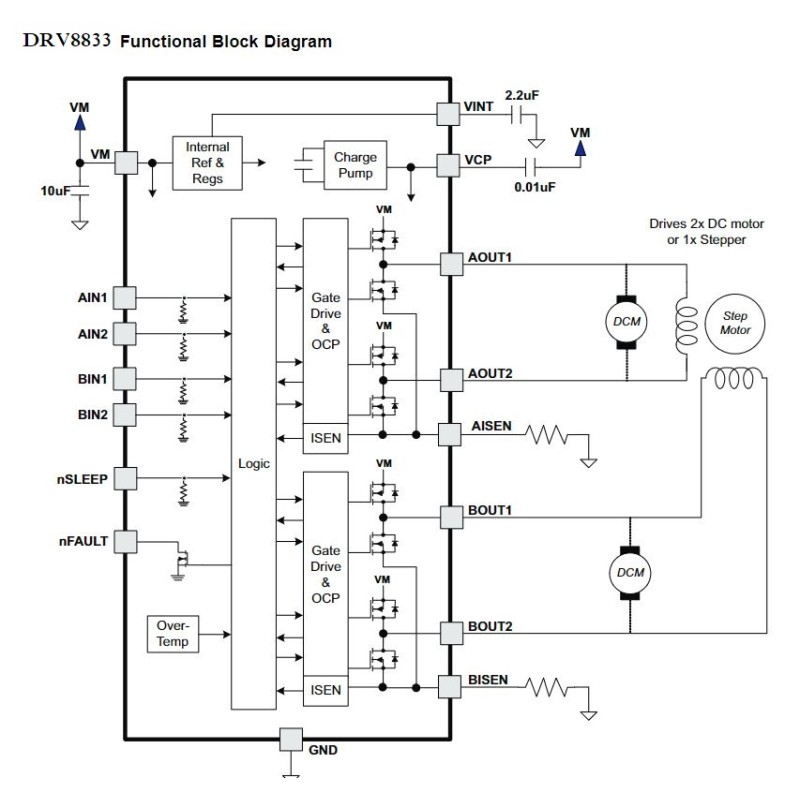

The DRV8833 device is an integrated motor driver solution for brushed DC or bipolar stepper motors.
The device integrates two NMOS H-bridges and current regulation circuitry.
The DRV8833 can be powered with a supply voltage from 2.7 to 10.8 V and can provide an output current up to 1.5-A RMS.
A simple PWM interface allows easy interfacing to the controller circuit.
The current regulation is a fixed frequency PWM slow decay.
The device includes a low-power sleep mode, which lets the system save power when not driving the motor.

Specifications:

Pin description:
ANI1: AO1 logic input control port, level 0-5V.
AIN2: AO2 logic input control port, level 0-5V.
BNI1: Logical input control port of BO1, level 0-5V.
BIN2: logical input control port of BO2, level 0-5V.
AO1 and AO2 are 1-way H-bridge output ports connected to two feet of a DC motor.
BO1 and BO2 are two H-bridge output ports connected to the two feet of another external direct motor.
GND: 0V.
VM: motor supply pin, voltage range 2.7V -- 10.8V.
STBY: Standby Pin

Download Datasheet here.
